Logic Analyzer & Timing

The Analyzer is a bottom-docked panel that records the live simulation and draws it as a scrolling timing diagram — one lane per signal you've chosen to watch, a step waveform for a single net or a hex value-lane for a bus, with two draggable cursors for measuring the time between two points. It's a passive recorder: it reads the same broadcast the LEDs and chip badges already render from, so opening it, closing it, or adding channels never changes how the circuit behaves.

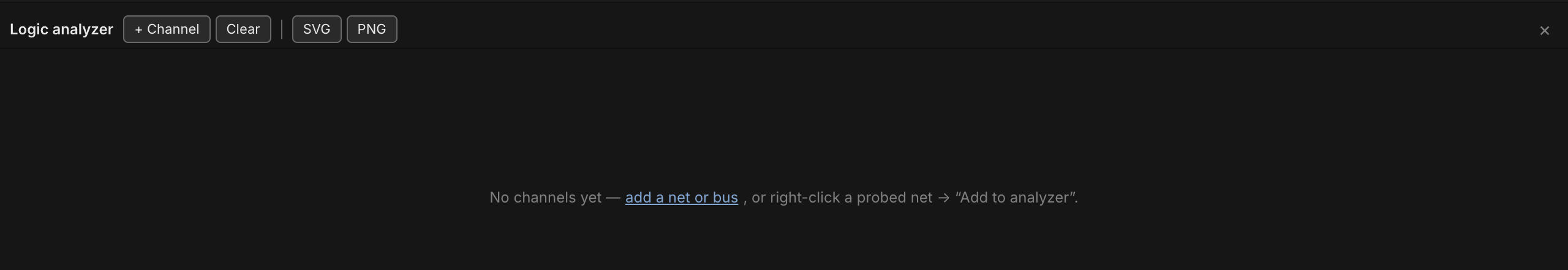

The logic analyzer panel, docked along the bottom of the window

Opening the analyzer

Click Analyzer in the toolbar, or press A — a bare key, like the desk's other tool letters, since Cmd/Ctrl+A is Select All — to dock the panel along the bottom of the window. Click the button again, press the shortcut again, or click the panel's × to close it — the panel remembers whether it was open and how tall you left it (drag its top edge to resize, from a compact strip up to half the window).

With no channels added yet, the panel shows a prompt instead of an empty grid: add a net or bus, or right-click a probed net and choose Add to analyzer.

Adding a channel

There are two ways to add a channel:

Each channel gets a row in the left-hand gutter: a color dot (cycled from a fixed palette unless the channel has its own color — either way the channel keeps it wherever you move it), the net or bus name, its current value, and three small controls — ↑ / ↓ to move the channel one row, and × to remove it.

To move a channel further, drag its row up or down the gutter. The rows and their waveforms make room as you go, so you see the new order before you let go; drop the row where you want it, or press Esc to put it back. Hold it against the top or bottom of the list to scroll a long list along. Reordering works while the simulation runs, too.

Channels are saved with the document (doc.scopeChannels), so a desktop reopens with its analyzer setup intact, and adding/removing/reordering a channel rides the normal undo/redo stack — a drag is one undo step. A channel that loses its target (the net was deleted, the bus was removed) simply reads as undriven rather than disappearing — it comes back to life if the target returns.

Reading a waveform

A single-bit channel (a net) draws as a step waveform inside its lane:

The gutter's value column always shows the channel's current level (or its value at cursor A, once one is placed — see below).

With Spice Lite on, a net with a voltage — every net something holds — draws that voltage instead: 0 V along the bottom of the lane, the highest supply on the desk along the top. A channel that goes below 0 V or above that supply (an AC adapter, a coil's kick) widens its own lane to take it in, at a round figure, and never narrows it again during the run; a lane that reaches below 0 V draws a dashed line at 0 V. A capacitor is seen to curve up toward its supply rather than to jump from Low to High, a 74LS signal swings between about 0.2 V and 4.4 V, and the value column reads in volts (3.16 V). While a voltage is moving, Spice Lite samples it thirty times a simulated second (a wave from a clock brick, sixteen times a period), and the analyzer joins those samples into its curve. Once the voltage is within the Settle gap (Settings ▸ Spice Lite) of where it is heading, Spice Lite stops sampling it, and the lane holds it flat until the next thing that moves it — so a switch thrown after a quiet second draws as a step, not a ramp.

Every voltage lane is read against ground. To read them against a net of your own instead, as a scope does with its ground clip on that net, put the ground lead there: with the probe on (I), right-click the hole or wire and choose Use as analyzer ground. A ground clip marks the hole, and the header shows the net, with a × that takes the lead off again. One lead serves every lane. On an AC adapter's floating circuit it is also where that circuit's ground is (see Where a floating circuit's ground is).

Timing and Transitions

The Timing | Transitions picker beside the panel's title chooses how the trace is laid across the lanes. Both draw the same recording, so you can switch back and forth, running or stopped; the analyzer remembers which one you left it on.

Timing

Across is simulated time. Each sample sits at the moment it was taken, so a clock's halves are as long as each other, a PWM's short half is short, and the gap between two switch presses is as wide as the time between them. Faint vertical lines mark the divisions, and the header shows how much time one division is (5 ms/div):

A scale too fine to hold the whole trace (more than about 16 million pixels of it) is refused, and if a long run at a fixed scale grows past that, the scale steps out to keep it.

Transitions

Across is change. Each sample where any channel moves gets a fixed slice, and a stretch where nothing moves folds away, so a second of steady HIGH and a microsecond glitch take the same room and only the interesting moments fill the screen. A fold that stands for real time — more than four of the trace's usual steps between samples — is drawn as a narrow shaded break with a dashed seam; hover it to see how much simulated time was cut out there. Shorter folds (a slow signal under a fast clock, a voltage creeping in tiny steps) close up silently, or the lanes would be striped with breaks that say nothing.

What counts as a change: a level, a bus value or a net that turns from a voltage into a level is compared exactly. A voltage counts as changed once it has moved more than the Settle gap (Settings ▸ Spice Lite, 1 % by default) of the lane's full scale from the value last shown — compared against what was last SHOWN, not the sample before, so a capacitor creeping up in steps each too small to count still adds a slice every time the creep adds up to one. Changing the gap redraws the trace at once.

The Δ readout reads simulated time in either mode, so two cursors measure the same in Transitions as in Timing even though the trace between them is folded.

Multi-bit (bus) lanes

A channel bound to a bus (see Wiring, Nets & Buses) doesn't draw a two-level waveform — decoding eight or sixteen individual traces would be unreadable. Instead it draws a value-lane: a band that necks down to a point at every change and displays the bus's current value as hex (0x1A, uppercase) centered in the band, wide enough for the label to fit. The bus is decoded from its member wires' bit positions (as parsed from a name like D[7:0]); if even one member is floating or unknown, the whole word is undecodable for that span and the lane hatches just like an unknown net.

Cursors & Δ

Click anywhere in the waveform area to drop cursor A at the sample under the pointer; Shift-click to drop cursor B. Drag either cursor to slide it to a different sample — the gutter's value column updates to show each channel's value at cursor A while it's placed. With only cursor A down, the header reads t=<tick>; with both down, it reads the delta between them — Δ N ticks, plus the simulated time between the two columns in milliseconds. Every column remembers the moment its tick ran at, so the figure is right whatever ticked in between — several clocks, a PWM's short half, a switch, a timer — and it is circuit time: a 10 Hz clock's period reads 100 ms at any speed.

While the simulation is running, the view auto-scrolls to keep the newest tick in sight; scrolling the lanes away from the right edge turns this "follow" behavior off until you scroll back. Clear in the header wipes the recorded trace and both cursors without touching the channel list; starting a fresh Run does the same automatically.

Export

Two buttons in the header export the diagram exactly as currently rendered — every channel, the full retained trace in the mode and at the scale on screen, and a label column identifying each lane. (At a scale fine enough to make the whole trace more than 16,000 pixels wide, the export is the stretch on screen instead.)

Both are plain browser downloads (no file dialog, no IPC round-trip) and do nothing if there are no channels or nothing has been recorded yet.
